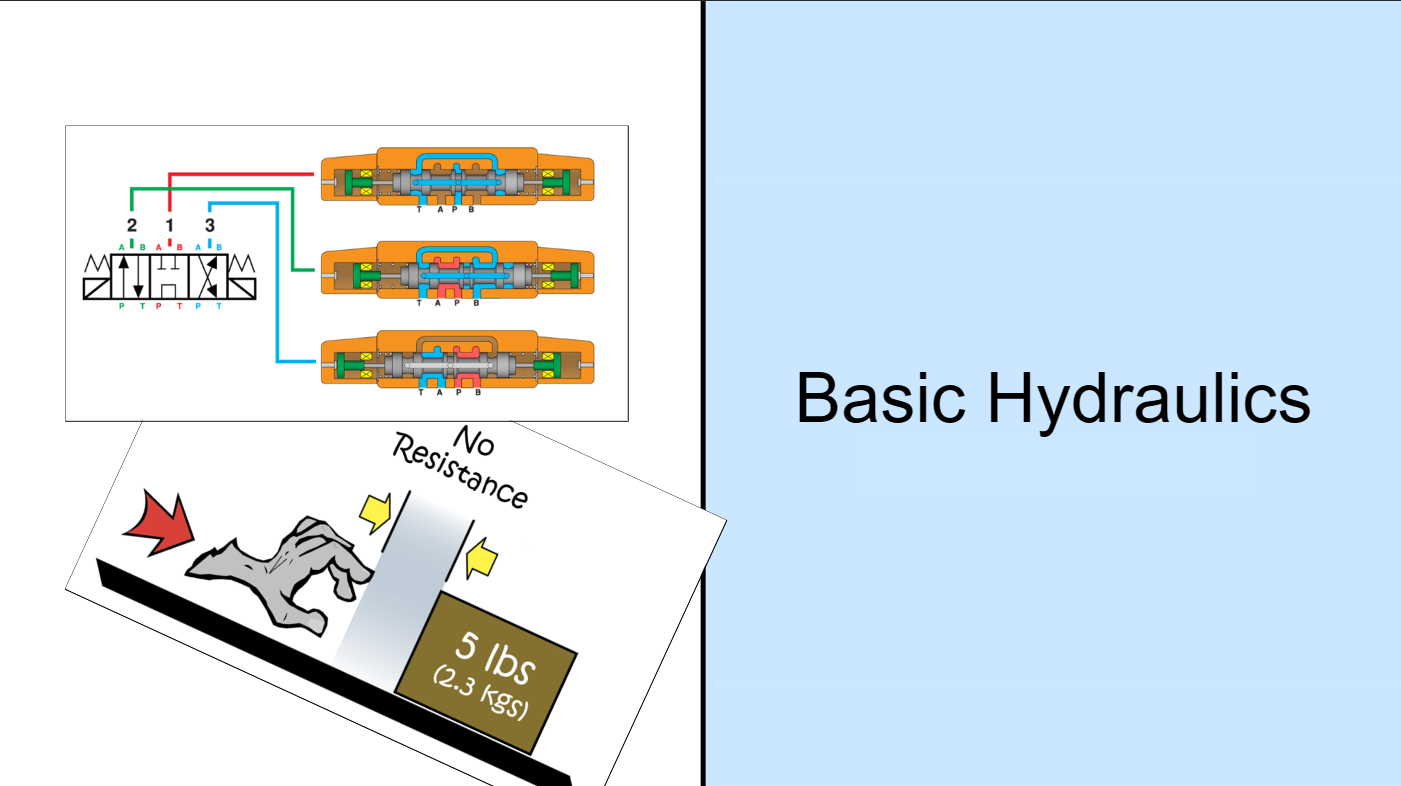

03 Basic Hydraulics

Welcome to our comprehensive online course on introductory hydraulics, designed to provide you with a solid foundation in understanding hydraulic systems and their components. This course will cover essential topics ranging from terminology to diagnostic equipment, ensuring you grasp key concepts for effective troubleshooting and system understanding.

EXPIRES: 30 days after purchase
AVERAGE TIME TO COMPLETE: 85 min

Course Content:

Terminology and Components:

• Learn common terminology used in hydraulic systems.
• Understand the six primary components utilized in hydraulic systems.
• Familiarize yourself with common diagnostic equipment for troubleshooting.

Fundamental Principles:

• Differentiate between hydrodynamics and hydrostatics.
• Recite and explain Pascal’s Law, highlighting its importance in hydraulic systems.

Pumps and Pressure:

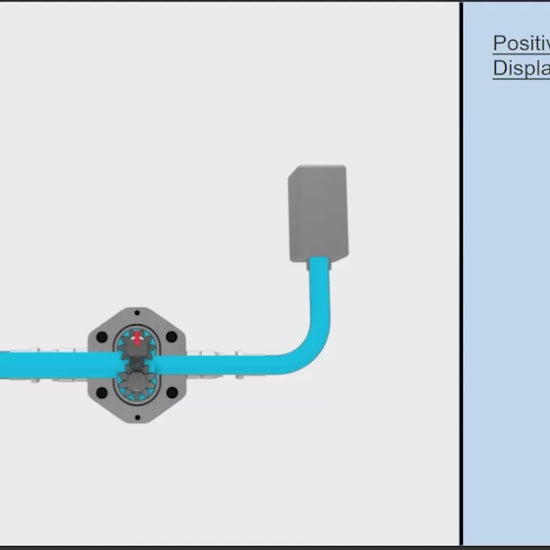

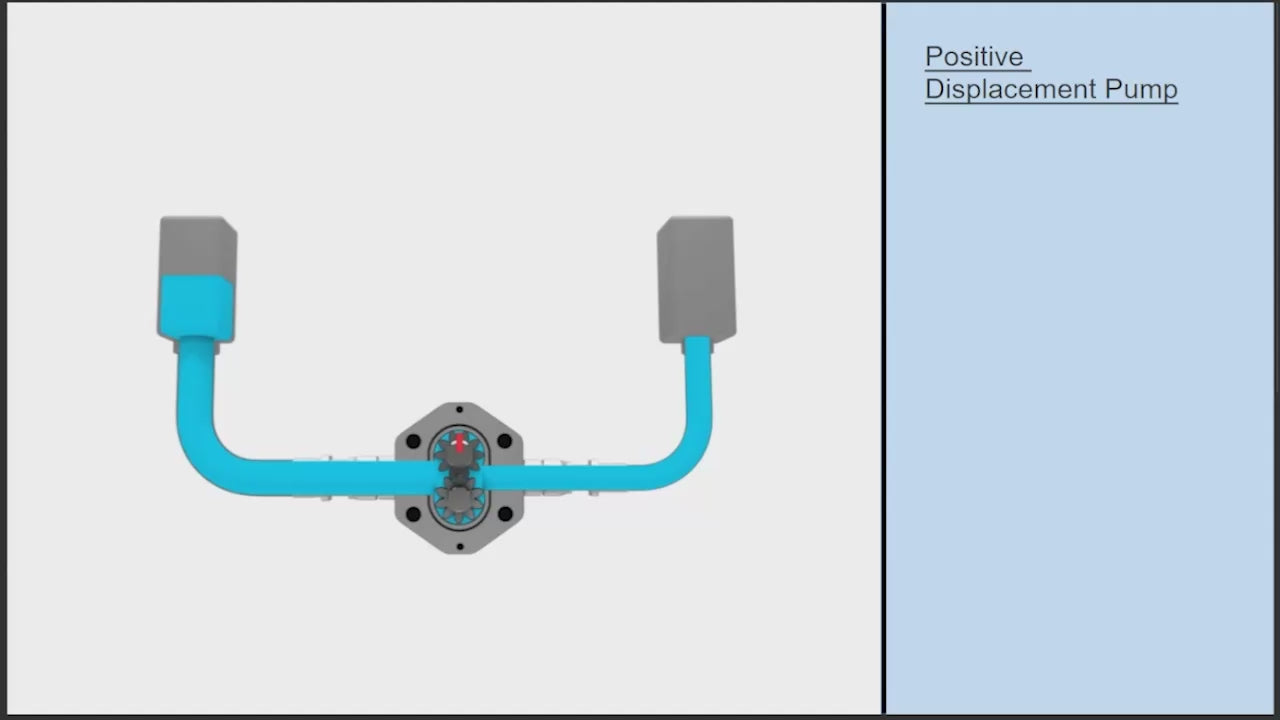

• Explain the difference between positive and non-positive displacement pumps.

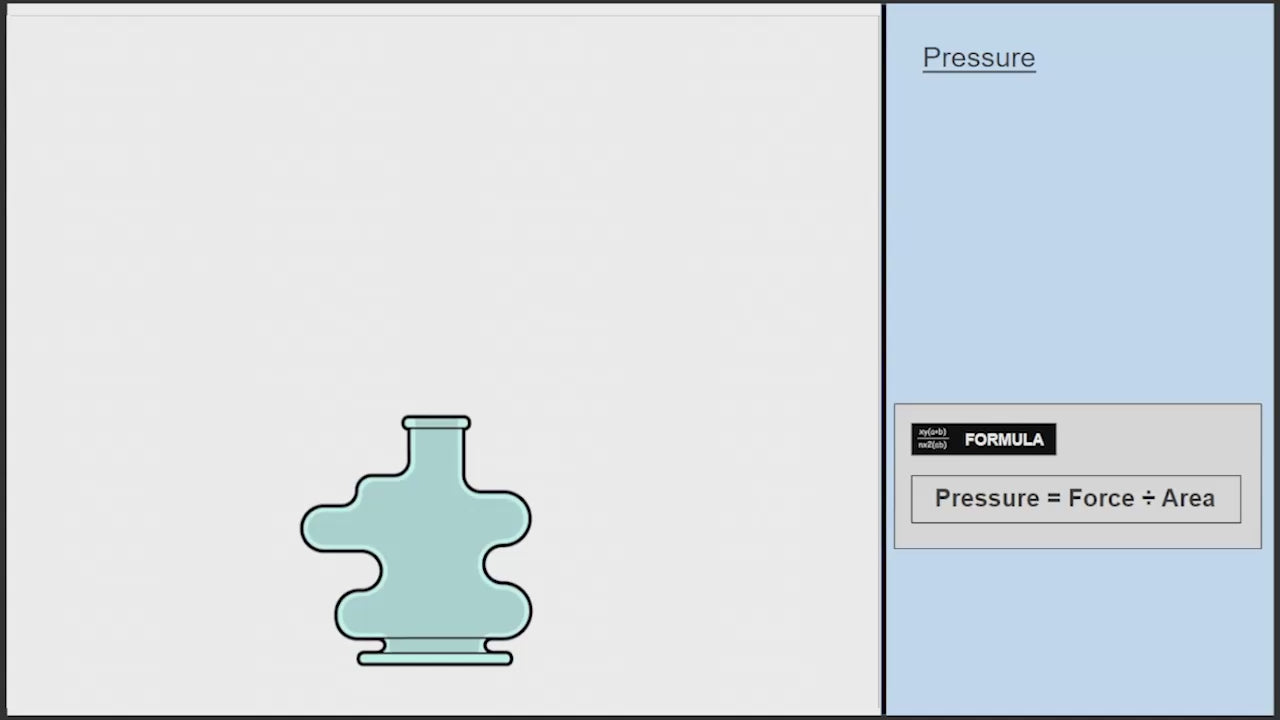

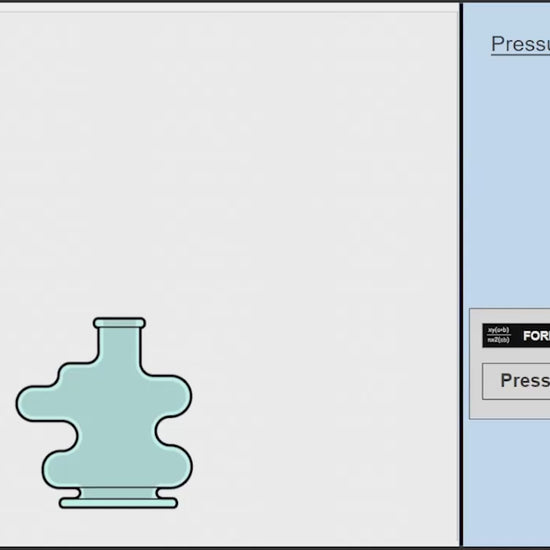

• Understand the relationship between resistance, force, and pressure in hydraulic systems.

Oil Flow Path:

• Describe the difference between parallel and series oil flow paths.

Pressure Generation:

• Understand how resistance to flow creates pressure in hydraulic systems.
• Explain mechanical horsepower versus fluid horsepower.

Hydraulic Pump Operation:

• Explain how hydraulic pumps create flow.

Primary Components:

• Name and describe the purpose and function of each of the six primary components in a hydraulic system.

System Types:

• Describe the simple difference between open-loop and closed-loop hydraulic systems.

Maintenance and Troubleshooting:

• Describe diagnostic instruments used to maintain and troubleshoot hydraulic systems.

By the end of this course, you will have a comprehensive understanding of hydraulic systems, enabling you to analyze and troubleshoot effectively while working with these systems.
